Depot Operating Object Model: Ontologies for Unifying Factory Systems From Test Cell to Part Lot

Ontologies for Unifying Factory Systems Start at the Test Cell

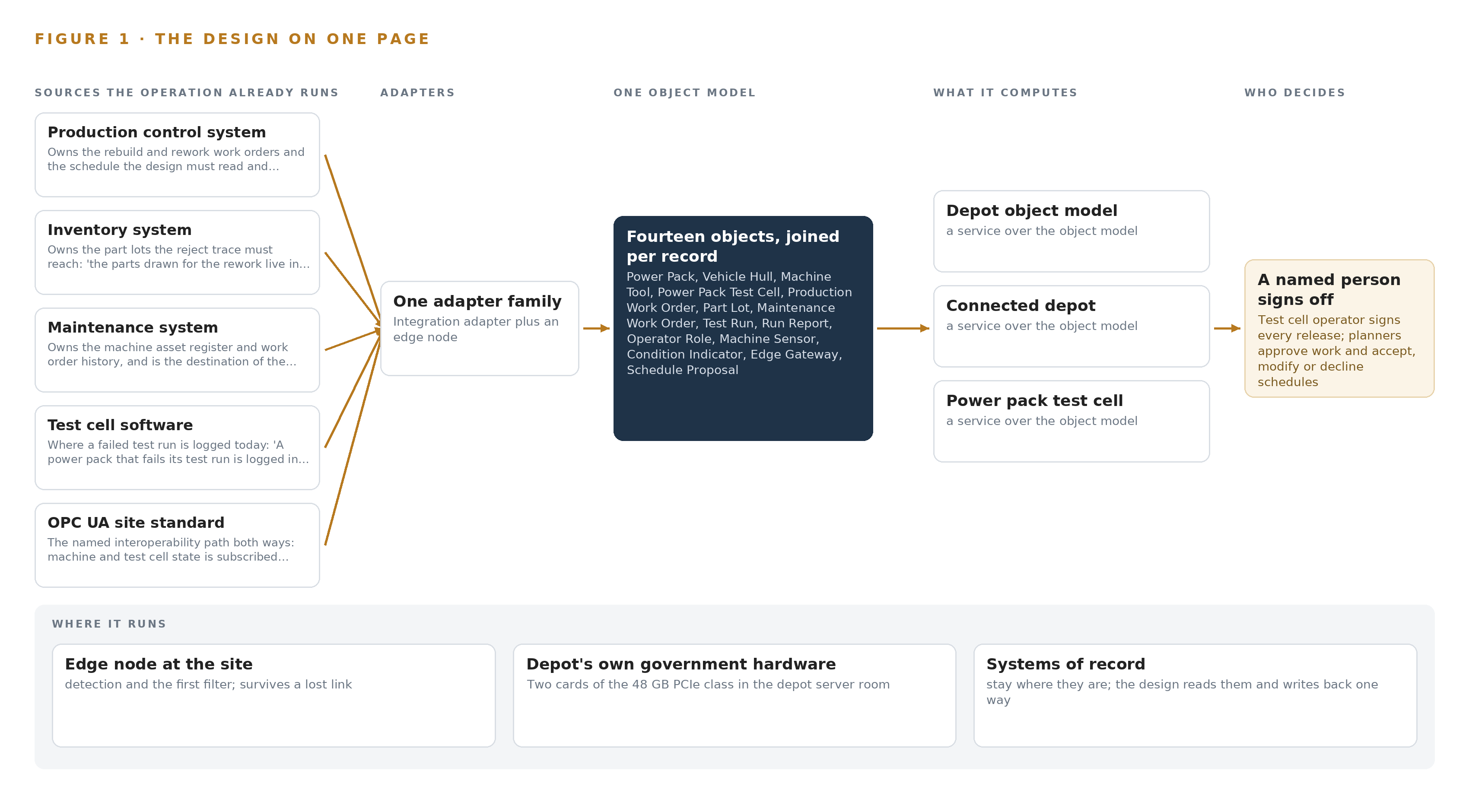

A power pack that fails its test run is logged in one system while the machine that cut its parts, the lot those parts came from and the schedule it displaces live in three others, so the question the depot most needs to ask has never been askable.

Ontologies for unifying factory systems are usually argued as an enterprise data program whose payback sits somewhere off in a roadmap. At a vehicle rebuild depot run by a discrete manufacturing and automotive operator in the United States, they stand or fall on one question asked at a test cell door: this power pack just failed its run, and no one can say which machine cut its parts, from which lots, in what condition, or what the rework does to next week's schedule. The abstract promised a design that makes that question askable; this chapter states the question exactly, prices the cost of leaving it unanswered, and describes the operation that has to live with it.

1.1  The Question the Depot Needs Answered

The question, in the operator's own shape: when a power pack fails a scripted test cycle, trace the failure back through the rebuild work order and its routing to the part lots drawn for each operation, then to the machine and operation each lot was issued to, and to that machine's condition while the cuts were made, then forward again to the rework the failure forces and the schedule it displaces. Answering it requires data no single system holds: work orders and routings from production control, part lots and issue dates from inventory, the machine asset register and maintenance history, transducer traces and limit sets from the test cell's own software, and live machine and cell state over the site's industrial interoperability standard. The regulatory regimes sit on top of the data. The depot is a US government site, so drawings, programs and test data are treated as controlled unclassified information (CUI) at most, which brings the platform enclave under NIST SP 800-171 Rev 3 and a named federal cybersecurity certification status before any such data is processed; models must be US-origin open weights with no third-party model service; and every machine and test cell interface is a read-only subscription, with findings published back over the same site standard rather than written into any control.

1.2  The Documented Cost of the Problem

The cost of systems that touch but do not join is public and large. In 2023 a single update to a parts-ordering system halted Toyota's production, and ABI Research put the lost production at about 350 million US dollars (Automotive Manufacturing Solutions 2023; ABI Research 2023). That failure mode is not exotic: manufacturing integration routinely combines technologies that were never designed to interoperate with each other, which is why a change in one system surfaces as a defect in another (NIST 2012). At a rebuild depot the everyday version is quieter and compounds: an untraceable reject cannot be closed with evidence, so it is reworked on judgment; a machine drifting out of condition cuts parts that fail test weeks later; and each failed run consumes test cell time the schedule had already promised elsewhere.

1.3  The Operation as a Scenario

The operator runs a vehicle rebuild depot: power packs and hulls arrive, are disassembled, rebuilt across several shops of mixed legacy machine tools that cannot be replaced, and must pass a scripted test cycle in the power pack test cell before release. The cell carries the site's transducer suite and data bus capture, and the design adds three observation cameras: the test cell, its control panel, and a machine shop aisle. The people in the loop are named by role: the test cell operator who signs off every release or return, the production planner who accepts, modifies or declines schedule proposals, the maintenance planner who approves condition-based work orders, and the site authorizing official and information systems security manager who own the security approvals package. The physical environments are machining halls with mist and coolant, the test cell, the machine cabinets holding edge hardware, and the depot's own server room, whose existing power and air cooling take two cards of the 48 GB PCIe inference class. The regulatory ground is a government facility with the CUI enclave described above, US-origin weight rules, and an export control regime a domestic camera install on the depot's own premises does not trigger. The design reads five named source systems plus the one site interoperability standard, through a single adapter family, with the test cell as the first live case and the machine shops following in a second phase.

Four Systems of Record Never Shared a Key

The production control, inventory, maintenance and test cell systems each hold a true and complete slice of the rebuild, and none of them can see the power pack whole, which is why four more interfaces would reproduce the problem instead of solving it.

Chapter 1 set out the question. This chapter explains why no system the operation already runs can answer it.

2.1  What Each System Sees

Production control system owns the rebuild and rework work orders and the schedule the design must read and inform; the object model's work order and routing objects are anchored here.

Inventory system owns the part lots the reject trace must reach: 'the parts drawn for the rework live in inventory'.

Maintenance system owns the machine asset register and work order history, and is the destination of the requirement's own loop: 'work raised in the maintenance system for a planner to approve'.

Test cell software where a failed test run is logged today: 'A power pack that fails its test run is logged in the test cell's own software'; the test run and run report objects are anchored here.

OPC UA site standard the named interoperability path both ways: machine and test cell state is subscribed read-only, and 'the result publishes to the depot's systems over the industrial interoperability standard the site uses'.

2.2  What None of Them See Together

Each holds one slice, and the question needs all of them in one place at once, which today is done by hand at the cadence of whoever has the time.

Sovereignty and Sign-Off Shape Every Choice Downstream

Read-only machine interfaces, legacy equipment that cannot be replaced, a person deciding every release and schedule change, and US-origin open weights on government hardware together fix the shape of every layer above them.

Chapter 2 showed that each system of record sees one slice and that the shared standard carries state without meaning. This chapter fixes the constraints that follow, because read-only interfaces, irreplaceable legacy equipment, a person deciding every change, and US-origin weights on government hardware together settle the shape of every layer above them before a single component is chosen.

3.1  One Object Model Over Systems That Never Shared a Key

The first goal is one operating object model linking power pack, hull, machine tool, test cell, work order, part lot and operator role, each object anchored in its system of record. It is hard in this industry because the four systems key the same physical world with unrelated identifiers: a power pack serial, a machine asset tag, a lot number and a run ID were never designed to meet. Most industrial ontology examples stop at the join; here the join must also stay live, because the model is a projection over the systems of record rather than a new system that would add a fifth key. Where no shared key exists, a supervised crosswalk is built and owned in the ontology with lineage, and proving the joins on live records is the first phase gate, not an assumption.

3.2  Read-Only Sensing Beside Equipment That Cannot Be Replaced

The second goal is to bring legacy machine tools and test equipment onto the network read only, with sensing and gateways placed beside equipment that stays. It is hard because a mixed legacy fleet has no uniform controller: retrofit taps on stack lights and serial printer ports, IEPE accelerometers stud-mounted per ISO 5348 on the critical tier, and current clamps must each be additive and reversible, and no write to the site or any machine is part of the design in any phase. Safety functions are excluded outright: interlocks, light curtains and emergency stops belong to the depot's certified systems, and the platform observes machine state without configuring any protective device.

3.3  A Person Decides Every Release, Work Order and Schedule Change

The third goal is that the platform proposes and a person commits: the test cell operator signs off every release or return, maintenance work is raised for a planner to approve, and schedule changes are proposals a planner accepts, modifies or declines. It is hard because the scheduling and maintenance software market defaults to automated optimization, and because a proposal must be good enough to trust without ever being obeyed; a deterministic layer records every proposal and every decision so the reasoning is auditable after the fact.

3.4  Sovereign Compute, US-Origin Weights and a Scoped CUI Enclave

The fourth goal is that data and models stay in the government's own environment, on the depot's own hardware, with US-origin open weights and no third-party model service. It is hard because the US-origin rule bars whole families of open weights whose publishers sit on the US Entity List, and because a government enclave must be scoped before it is assessed: the design assumes controlled unclassified information at most, keeps the NIST SP 800-171 enclave small with the authorizing official and information systems security manager as named owners, and touches nothing classified. Everything from the edge boxes to the work surface runs on site, and the server room's existing power and air cooling take the two 48 GB inference cards without a room upgrade.

3.5  Scoping Decisions

Three decisions bound the design, each buying something specific at a stated cost, set out in Table 1: the ontology as projection rather than replacement, the test cell as the only first live case, and baselines rather than trained weights.

3.6  What the Design Chose Against

Each rejection below was made against a live alternative with a reason the requirement itself supplies, set out in Table 2, closing with the boundary of what the design will not touch at all.

One Stack Reaches From Record Systems to Surfaces

Sources feed adapters, adapters feed one object model, the model feeds services, and services feed the surfaces where planners and operators act, with the count at every layer fixed by the layers beneath it.

Chapter 3 fixed the constraints and priced every scoping decision against them: read-only machine interfaces, the depot's own government hardware, US-origin open weights, and a person committing every change. This chapter lays the stack that satisfies them, and it is the working answer to ontologies for unifying factory systems: five source systems, one adapter family, one object model of fourteen objects, three models, eight services and three surfaces, with the count at every layer fixed by the layers beneath it.

4.1  The Pattern and Why It Fits

The pattern is three strata. Below sit the systems of record: production control, inventory, maintenance and the test cell software, each still owning its own keys and its own truth. In the middle sits one object model, built as a projection over those systems rather than a migration of them, so no system of record is replaced and none is asked to adopt another's identifier. Above sit the applications and agents: eight deterministic services and three surfaces, with the agents running on the work surface model under the site's own identity. The National Institute of Standards and Technology observes that manufacturing integration routinely means combining technologies that were never designed to interoperate with each other (NIST 2012), and a government depot that has accreted systems across decades is that observation at full scale. Point-to-point interfaces between each pair of systems would reproduce the vocabulary problem the design exists to solve; one projection resolves it once, for every consumer at once. Figure 3 shows the layered stack with the count at every layer: five sources, one adapter family, fourteen objects, three models, eight services and three surfaces, each number downstream of the one below it.

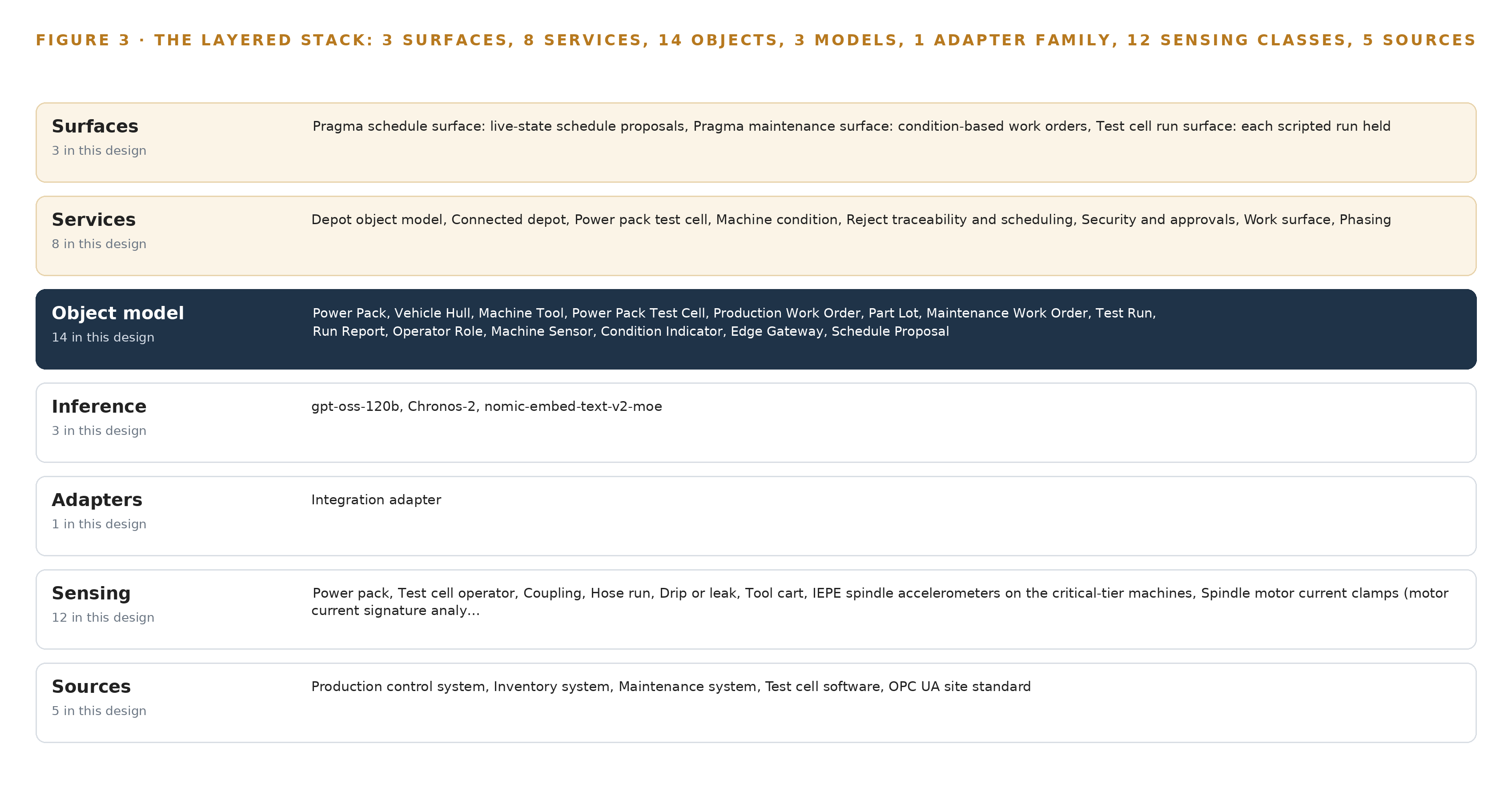

4.2  The Stack Stage by Stage

Table 3 states each stage's responsibility and the named components that discharge it. Table 7 below carries the same stack layer by layer with the product chosen at each layer and the reason for the choice, including the layers this design deliberately leaves without any product at all.

4.3  A Reusable Pattern

The shape worth carrying to any similar brief is the projection over read-only record systems: adapters subscribe, the model links, services compute, surfaces propose, a person commits. A team reusing it swaps the interoperability standard for whatever their site already runs, swaps the object set for their own assets and records, and swaps the models within their own origin and licensing rules. What they keep is the discipline that makes the shape hold: machines are never written to, no system of record is replaced, the only write path is a person-approved record, and the first gate proves the joins on live production data before any analytics is trusted.

Fourteen Objects Turn Depot Data Into One Argument

Power pack, vehicle hull, machine tool, test cell, work order, part lot and operator role become fourteen typed objects whose links let one query walk from a failed test run back to the part lot and the machine that cut it.

Chapter 4 showed the stack as layers with fixed counts. This chapter opens the middle layer, where fourteen typed objects turn record systems that never shared a key into one argument a planner can query.

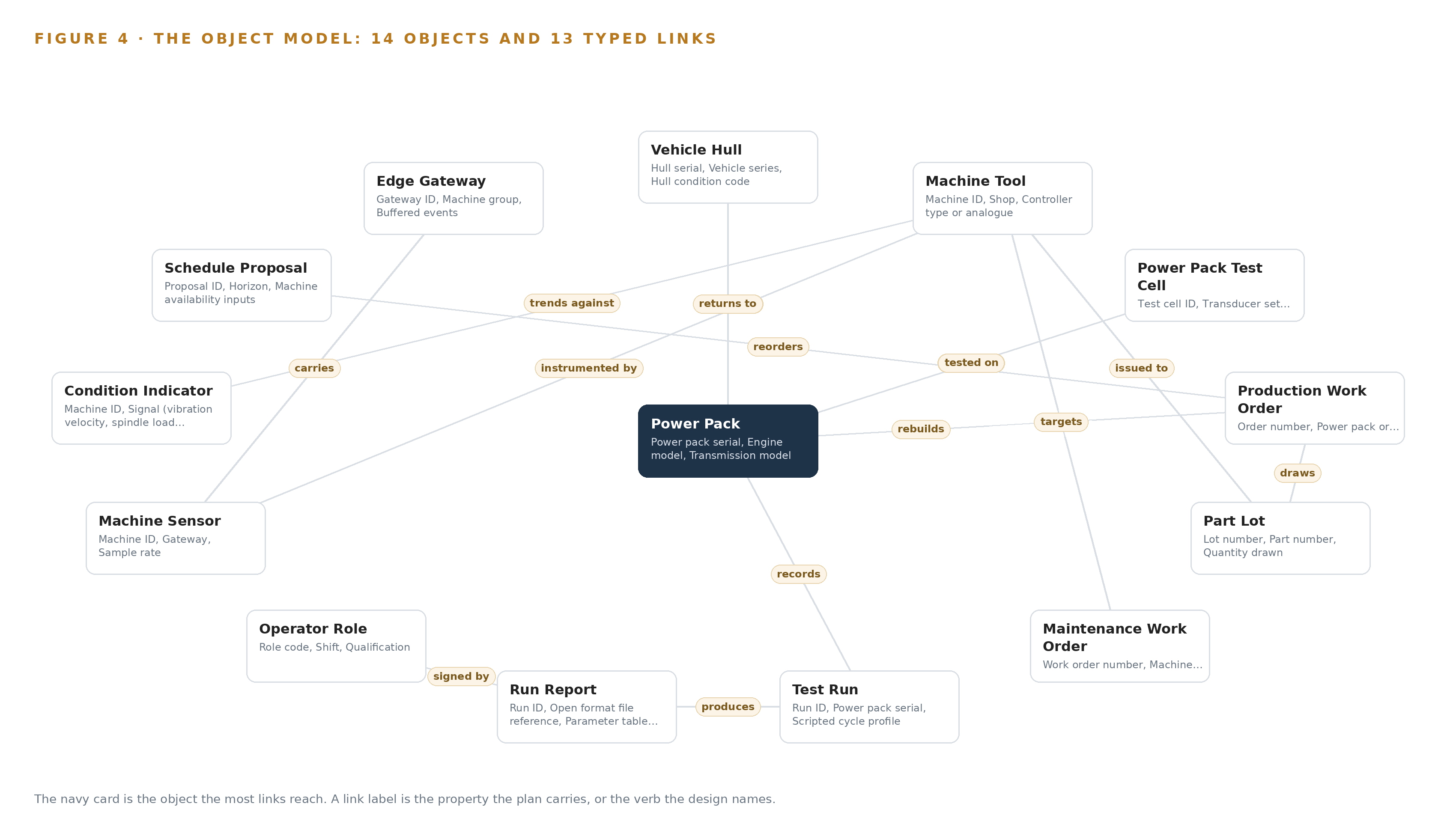

5.1  Fourteen Objects and Their Links

Four objects carry asset identity: the power pack, the vehicle hull, the machine tool and the power pack test cell, joined by the machine sensor as the instrumented asset and the edge gateway as the system object that carries its traffic. Three carry intent as records: the production work order, the maintenance work order and the schedule proposal. The rest are one each by kind: the part lot as material, the test run as event, the run report as document, the operator role as actor, and the condition indicator as measure. Figure 4 draws every object and its typed links. The links are what a document store cannot hold: an out-of-tolerance test run links by power pack serial to the power pack, whose rebuild work order links to the part lots drawn, each lot issued to a machine and operation, and that machine links to its sensors and its condition indicators. One query walks from a failed test run to the machine that cut the failing part and the vibration baseline it was running against, crossing four systems of record in a single traversal; in a document store every hop is a separate search against a separate index, and the hops are exactly where the trace dies today. Table 8 below anchors each object in its system of record and lists its typed links. Many industrial ontology examples stop at the schema; this one is a live projection whose links are walked by queries every day, and whose crosswalks carry lineage wherever the record systems never shared a key.

5.2  The Human Loop and the Hosting Posture

The loop lives in status vocabularies, not in prose. A maintenance work order moves through Proposed, Approved, Scheduled, In work, Complete or Declined, and only a planner moves it; a schedule proposal is accepted, modified or declined by the planner it names; a run report stays draft until the test cell operator signs it, and only a signed report publishes over OPC UA. The operator role object carries the qualification and sign-off authority that makes each of those signatures mean something. The hosting posture is fixed by the requirement itself: everything runs on the depot's own government hardware inside the facility's security rules, data and models stay in the government's own environment, identity is issued on site through Keycloak, there is no external link and no third-party model service, and one-way transfer hardware is the only path by which anything would ever leave. The only write path out of the platform is the person-approved record: work raised in the maintenance system, and the signed run report. No machine or site control is ever written to.

5.3  One Object in Its Recorded Form

The power pack, anchored in the production control system, is recorded in the model in the following form:

{ "id": "power-pack", "label": "Power Pack", "kind": "asset", "anchored_in": "The production control system", "properties": [ "Power pack serial", "Engine model", "Transmission model", "Vehicle series it returns to", "Rebuild work order", "Current shop", "Test history" ], "status_vocabulary": [ "Received", "Disassembled", "In rebuild", "Awaiting test", "On test", "Test failed, returned for rework", "Passed, released" ], "links": [ { "to": "power-pack-test-cell", "label": "tested on" }, { "to": "vehicle-hull", "label": "returns to" }, { "to": "test-run", "label": "records" } ] }

Five Sources Enter Through One Adapter Family

Every source system arrives through the integration adapter family over the site's OPC UA standard and MTConnect taps, with the event backbone preserving order and buffering through outages so no machine is ever written to.

Chapter 5 described what the model holds. This chapter describes how data gets into it: five source systems, all of them the operator's own, all arriving through one adapter family that never writes to a machine.

6.1  Five Sources and Their Provenance

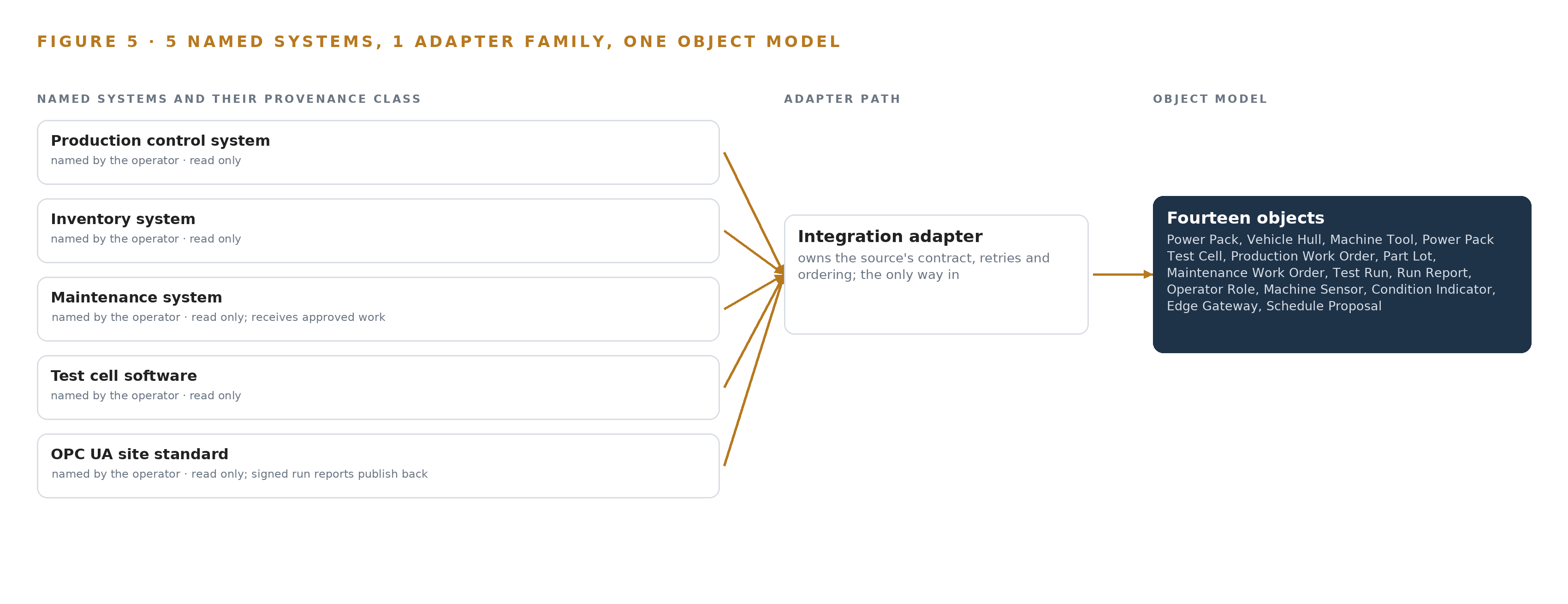

Figure 5 maps them. The production control system, the operator's own system of record for rebuild and rework, contributes the work order and routing objects, read only. The inventory system owns the part lots the reject trace must reach. The maintenance system owns the machine asset register and work order history, and it also receives: the design's own loop ends as work raised there for a planner to approve, though that write is a person-approved record rather than a machine interface. The test cell software holds the test runs and the run reports. The OPC UA site standard is the fifth source and the interoperability path in both directions: machine and test cell state is subscribed read-only over it, and the signed run report publishes back over it. NIST defines interoperability as the ability of two system components to communicate correctly and completely with each other, and notes how rarely the word is met in practice (NIST n.d.). The design therefore rides the standard the site already runs rather than inventing a parallel one.

6.2  What the Adapter Tier Guarantees

One adapter family, built on the Open62541 OPC UA stack, carries every source, and its guarantees are fixed. Every interface is a read-only subscription, in every phase, with no write to the site or any machine. Identity is checked on site before any subscription opens. Each message carries provenance, so every property in the object model traces back to the record system that owns it, and where two systems do not share a key a supervised crosswalk is built and owned in the ontology with lineage rather than silently matched. Legacy machines join the network the same way, through stack light and serial taps beside the controller, additive and reversible, replacing nothing.

6.3  The Event Backbone

Apache Kafka 4.3 with KRaft runs the backbone inside the site. Ordering is per key: every event for one machine or one test run is totally ordered, so a scripted cycle's parameter sequence never reorders in the store. Delivery is at-least-once with idempotent writes into InfluxDB 3 Core and the object model, so a replay cannot double-count a part lot. Buffering lives at the edge: each machine-group gateway holds events through a network outage and catches up when the link returns, and its clock offset and last sync are themselves visible objects. Time comes from a PTP grandmaster through linuxptp, because a store that merges sensor streams on a sloppy clock cannot support a trace. Replication stays inside the site, on the depot's own hardware. The posture is earned from the industry's own losses: a simple update to a parts ordering system halted Toyota's production (Automotive Manufacturing Solutions 2023) at an estimated 350 million US dollars (ABI Research 2023), and because this design is additive and read-only against every machine, the worst it can do to production is stop reporting on it.

Forecasting Lives at the Edge, Reasoning in the Server Room

Condition scoring and vibration acquisition run on fanless edge boxes beside each machine group, the 117-billion-parameter work surface model runs on the depot's own two-card inference server, and only derived states cross the boundary between them.

Chapter 6 described how five source systems enter through adapters and an event backbone without any of them surrendering control of its records. This chapter describes where the computing happens once the data is inside, and why the split between the machine cabinet and the server room is a load-bearing decision rather than a convenience.

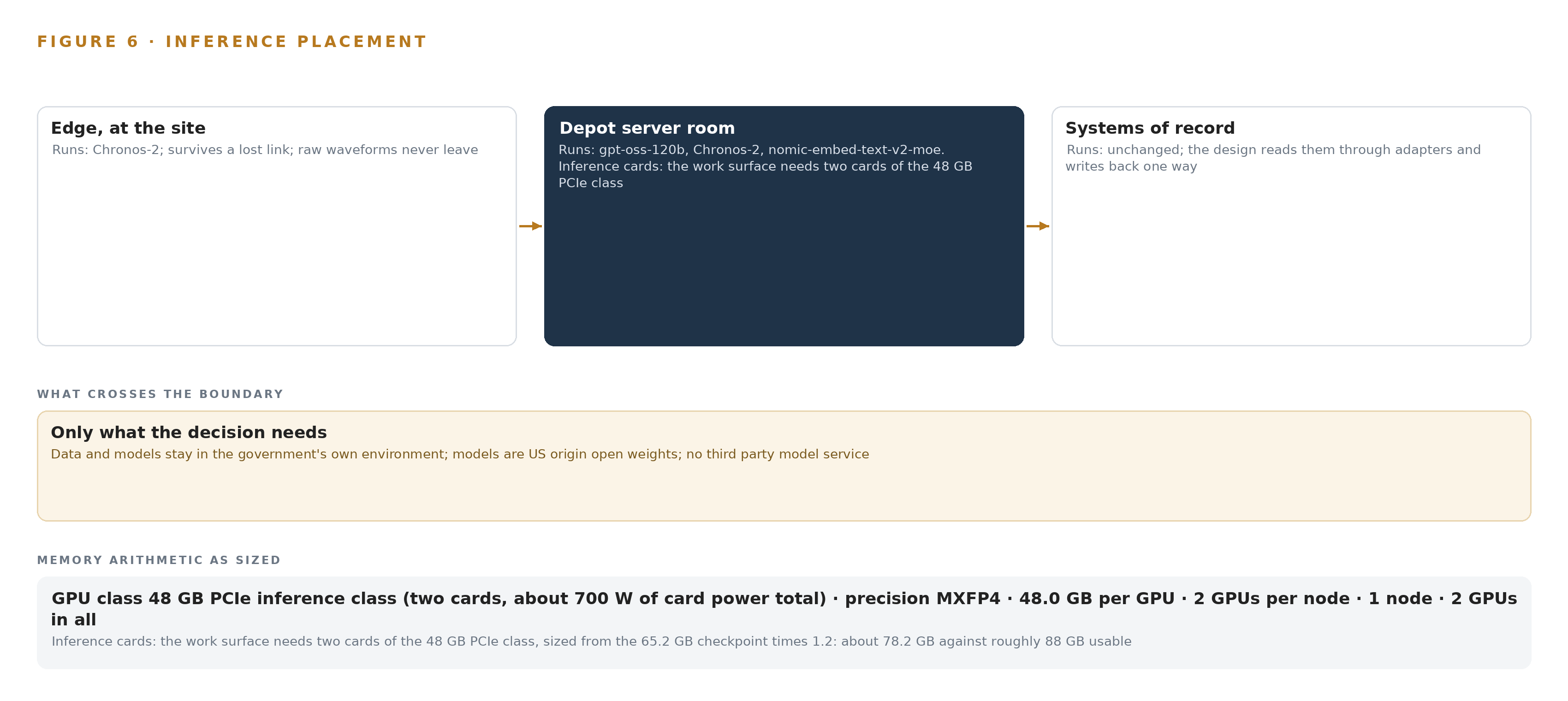

7.1  Three Tiers, Each Sized for Its Own Duty

The design places inference at three tiers. At the edge, fanless DIN-rail industrial computers sit beside each machine group and at the test cell, running the vibration acquisition channels, the controller state subscriptions and the first-pass condition scoring; the forecasting model that carries that scoring, Chronos-2, occupies about 0.48 GB at 32 bit as published and about 0.24 GB at 16 bit, which leaves the bulk of a fanless unit's memory for waveform capture at tens of kilosamples per second. The vibration acquisition load on this unit is unmeasured, so a dev board measurement of the actual channel count and sample rate is the phase one gate before the edge class is fixed, and the PCIe accelerator module is the named growth path if the measurement lands high. At the site tier, the same forecasting model runs in an analytics role beside the embedding model and the time series store. At the top, the agentic work surface model runs on the depot's own inference server: two cards of the 48 GB PCIe class, air-cooled in the depot's server room on its existing power, drawing about 700 W of card power between them. The memory arithmetic comes from the published checkpoint: the 117 billion parameters ship as about 65.2 GB, the MoE weights in MXFP4 and the rest at 16 bit; multiplied by 1.2 to reserve room for the KV cache and activations, the cards must hold about 78.2 GB, against 96 GB of memory on two 48 GB cards and roughly 88 GB usable after the serving runtime takes its share, about 10 GB of headroom. The KV cache ceiling that remains is enough for the planner-facing sessions the work surface actually serves, and no larger model is committed. Figure 6 sets the three tiers side by side with what runs on each.

7.2  The Latency Budget

The budget is set by the fastest consumer of each signal, and the design's read-only posture removes the tightest class from the budget entirely: because no machine or test cell interface ever writes to a control, there is no control-loop latency to guarantee, only an observation and advisory one. Continuous transducer and data bus reads must arrive in order and with a trustworthy timestamp, which is why the design carries a PTP grandmaster of the OCP Time Card class and boundary or transparent clock support on every hop between it and the edge boxes, since an unmeasured queueing delay would spend the whole time error budget. Condition scoring wants to land near the machine so a rising indicator is visible within the shift. The work surface and the scheduling proposals it drafts serve planners, so its latency tolerance is human, measured in how long a planner waits for a drafted schedule, not in milliseconds; the same holds for the run report, which is produced at the end of a scripted test cycle and signed off by a person before anything is published.

7.3  What Crosses the Boundary, and What Each Failure Costs

The network boundary between the edge boxes and the site tier is crossed by derived states, not raw waveforms: condition indicators with their zones, machine state, test run outcomes and signed run reports, all carried on the event backbone toward the object model, and run reports publish onward over the site's OPC UA interoperability standard. When the link fails, the edge boxes keep working and catch up: each gateway object records its buffered events, clock offset and last sync, and resynchronizes on recovery, so a dark uplink delays visibility rather than losing it. When power fails, Network UPS Tools rides the units through the gap and the buffers absorb the rest. When the update path is exercised, artifacts move through the Harbor registry under the air-gapped transfer discipline, with Lidi handling any one-way transfer out of the enclave, so no update channel doubles as an inbound path. None of these failures reaches a machine control, because none of these paths writes to one.

The License Terms Decide What the Depot Owns

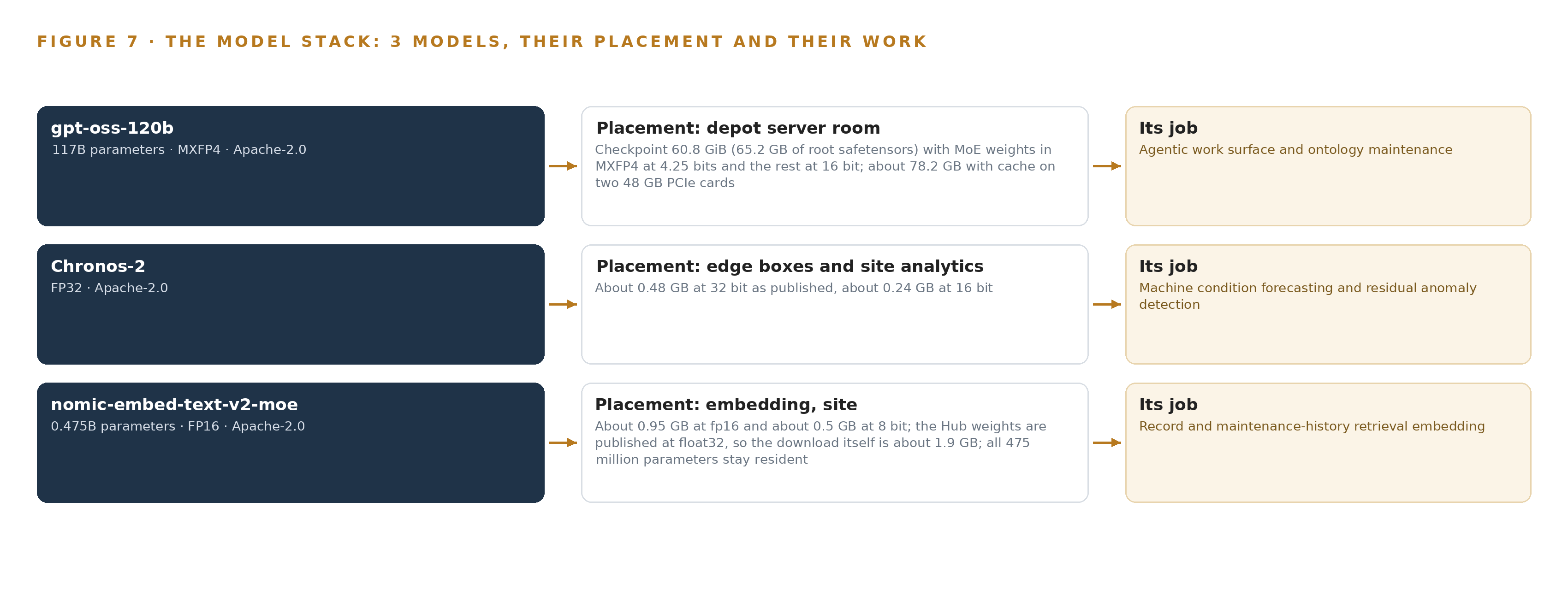

Three Apache-2.0 models from US publishers carry forecasting, retrieval and the agentic work surface, and the plainness of the license is what lets the depot hold its own weights inside the government boundary rather than rent them back.

Chapter 7 fixed where each model runs and proved the two-card server holds the work surface with headroom. This chapter turns to the terms under which those weights are held at all, because on a government site the license is not fine print: it decides whether the depot owns its intelligence or rents it back. Figure 7 sets out the model stack in one view, and its shape follows from a single constraint stated in the operator's own words: the models are US origin open weights, with no third-party model service. Three models, all Apache-2.0, all from US publishers, satisfy that constraint outright. The work surface model is gpt-oss-120b, a 117-billion-parameter mixture of experts published by OpenAI and filed under the 300-billion-parameter threshold that would have forced a frontier cluster class. Its checkpoint is 60.8 GiB, with the MoE weights in MXFP4 at 4.25 bits and the remainder at 16 bit; its role is agentic work surface and ontology maintenance, running on the site inference server described in Chapter 7, where it carries Pragma's agents over the ontology, the run reports and the maintenance histories. It was chosen because the requirement's US-origin rule sets aside the house GLM class, whose publisher's US Entity List listing would bar it for this site regardless of fit. Apache-2.0 imposes no field-of-use restriction and no per-seat trigger, so the depot holds the weights as property. The forecasting model is Chronos-2, a zero-shot multivariate forecaster with covariate support under Apache-2.0 from a US publisher. It occupies about 0.48 GB at 32 bit and about 0.24 GB at 16 bit, which is why it fits both the machine-group edge boxes and the site analytics tier. Its role is machine condition forecasting and residual anomaly detection: baselines and thresholds are computed per machine class from live data, and no weights are ever trained, which is the system of context rule for this site. The retrieval model is nomic-embed-text-v2-moe, a 475-million-parameter Apache-2.0 embedder from a US publisher, with Matryoshka truncation to 256 dimensions so the depot's work order, maintenance and test report corpus fits the site index. All 475 million parameters stay resident because every expert is exercised; the footprint is about 0.95 GB at FP16 and about 0.5 GB at 8 bit. The other embedders considered that are large enough for this job are of Chinese origin and barred by the same rule that set aside the GLM class.

8.1  The Model and Equipment Register

The register gathers every choice this chapter and Chapter 7 stand on, so a reader can audit the reasoning in one place: each model, the hardware classes and their sizing rules, the sensing, the patterns the design rests on, and the ground all of it runs on, shown in Table 4.

A Week of Live Joins Comes Before Any Trust

Phase one is sixteen items across six workstreams ending in a gate that proves entity resolution on a week of live records with a stated match rate, and phase two carries the estate instrumentation rollout only after that gate holds.

Chapter 8 settled the models and the licenses that let the depot hold its own weights on its own government hardware. This chapter sequences the build so that the joins are proven on live records before any alarm, trace or proposal is trusted, and it names the gates that can stop the work cheaply.

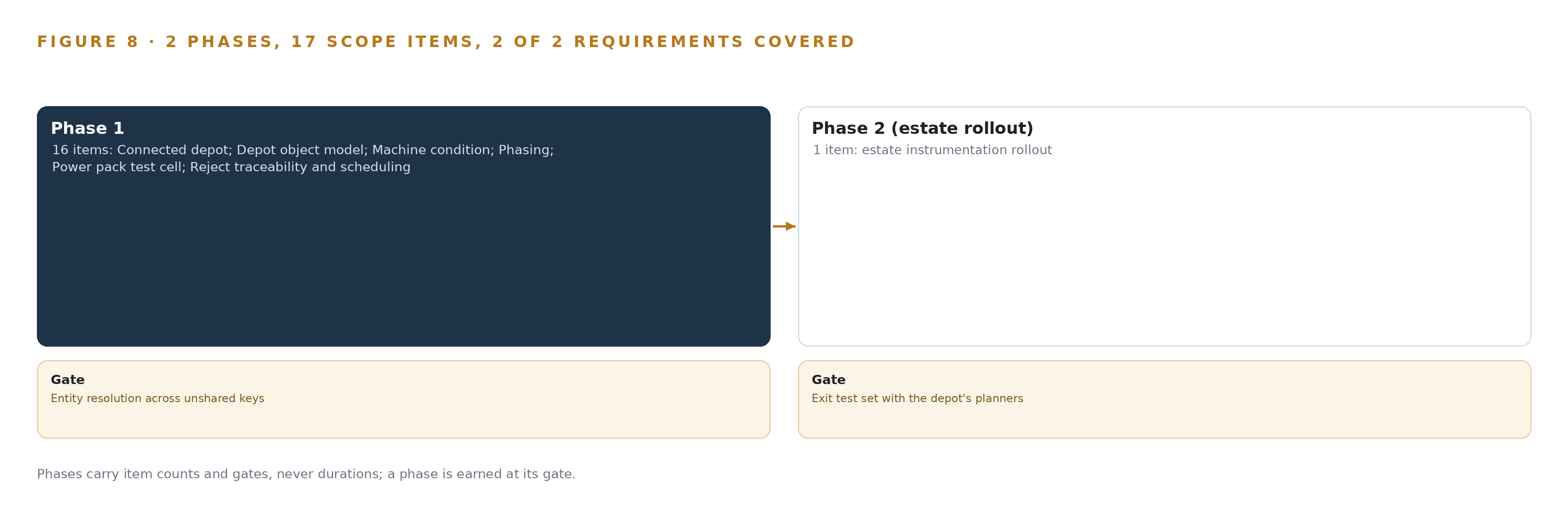

9.1  Two Phases, Sixteen Items and One Gate

Phase one carries 16 items across six workstreams: Connected depot, Depot object model, Machine condition, Phasing, Power pack test cell, and Reject traceability and scheduling. The items include the depot operating object model core, entity resolution across the unshared keys, and the read-only machine data backbone over OPC UA, alongside the test cell instrumentation, the condition baselining per machine class, the reject trace through part lots, and the schedule proposals a planner decides. The phase ends at a single exit gate: entity resolution proven across one week of live production records, with the power pack serial, the machine asset tag, the part lot and the test run identifier, four keys no system of record shares, joined at a stated match rate. Phase two carries one item, the estate instrumentation rollout, and it is admitted only once that gate holds. Requirement coverage stands at two requirements covered, none partial and none open, and Figure 8 sets the phases, their item counts, their workstreams and the gate against that coverage.

9.2  What the Rollout Measures

Every gate in this build is a measurement, not an assertion. The match rate across the four identifiers is measured on the week of live records before any crosswalk is accepted, and where a key does not exist, the supervised crosswalk built in its place carries lineage and an owner. Baseline stability is measured per machine class and per machine, so a fan and a spindle are never held to one threshold. Alarm precision is measured by checking elevated and alarm zones against what maintenance actually finds when work is raised. The disagreement rate between operator-entered downtime and reject reason codes and machine state taken from the controller taps is measured continuously, because that rate is itself a signal about data quality rather than a fact to be filed. Clock offset and buffered event count are read from each edge gateway, and the open-format run report is checked for fidelity as published over the site's OPC UA standard.

9.3  Failure Modes

The design names what can fail and what it does about each; Table 5 holds the register, and the cost of getting integration wrong at scale is documented: a single update to a parts-ordering system halted production across a major manufacturer's plants at an estimated 350 million US dollars in lost output (ABI Research 2023).

9.4  Lessons

Prove the joins before the analytics. The whole design rests on one projection over four systems that never shared a key, so the week of live records and its match rate come first, and no condition indicator, reject trace or schedule proposal is trusted ahead of them; the documented cost of an integration fault in this sector is measured in hundreds of millions of dollars (ABI Research 2023), and a gate that costs a week of records is cheap insurance against that cost.

Instrument only the machines whose failures announce themselves. Condition monitoring on a machine with no wear-out zone buys nothing and calendar removal of such items can add infant-mortality failures, so classification by failure pattern and consequence precedes every sensor purchase, and the register records where the answer is to leave the calendar alone.

Keep the enclave small enough to assess. A controlled unclassified information boundary scoped late stops a program rather than slowing it, so the enclave is scoped in phase one with named owners, and everything that does not need to touch the drawings, programs and test data stays outside it.

Treat reason codes as a signal, not a fact. Operator-entered codes decay, so the design never reasons from them alone; it reasons from machine state and treats the disagreement between the two as a monitored quantity a planner can see.

9.5  What Is Still Open

Three questions remain open, and each has a named settling path. The match-rate threshold that constitutes a pass at the gate is set with the depot's planners once the week of live records is in view, and settling it fixes how much crosswalk effort phase two inherits. The controlled unclassified information determination for the drawings, programs and test data rests with the site authorizing official, and settling it fixes the enclave boundary and therefore the assessment scope. The dev board measurement of vibration acquisition load fixes the edge hardware class or moves it to the PCIe accelerator module, and settling it fixes the per-machine-group bill of materials for the estate instrumentation rollout.

The Depot Owns the Model and Its Memory

The object model, the per-class baselines, the decision record and the hardware all belong to the depot, which means the intelligence compounds inside the government boundary instead of leaving it with every improvement.

Chapter 9 showed how the build earns trust one gate at a time. This chapter settles who holds what the build produces, because a system that compounds learning inside a government boundary is worth nothing if every improvement walks out of it.

10.1  What the Depot Owns

The object model belongs to the depot. It is a projection over the production control, inventory, maintenance and test cell systems, but the projection, the crosswalks and their lineage are assets the depot keeps, expressed in its own vocabulary and re-pointable if a system of record is ever replaced. The weights belong to the depot as well: every model in the design is an Apache-2.0 open-weight model of US origin, held on the depot's own government hardware, and because nothing in this design is trained or fine-tuned into weights, the improving assets are the per-machine-class baselines, the alarm thresholds and the failure mode register, all of which are data the depot produced and owns outright. The decision record belongs to the depot: every sign-off on a run report, every planner acceptance, modification or decline of a schedule proposal, and every maintenance work order approved or declined is a kept record the next decision reads, so the memory of how the depot actually judges its own machines stays with the depot. The boundary belongs to the depot: the edge boxes, the site inference server and the work surface run on government hardware inside the facility's security rules, updates arrive through a one-way transfer path, and no data or model leaves the boundary to any third-party service.

10.2  The Offer Behind the Design

CodeNinja builds this shape under five names, and this design maps to each of them: Adaptive Operations is the sensing and forecasting of physical behavior, the transducer and data bus reads in the test cell and the vibration, spindle load and temperature trending on the machine tools; Decision Systems is the ranking, attribution and recommendation a named person decides, the reject trace through part lots, the schedule proposals a planner accepts or declines, and the maintenance work a planner approves; Hyper Ontology is the object model itself, the projection over the four systems of record; Hyper Pragma is the work surface on which the depot's own planners and engineers build and run their agents; and Sovereign Infrastructure is the posture the whole design takes, own government hardware, Apache-2.0 open-weight models of US origin, and operation inside the facility's security boundary with no third-party model service. Praxis is the platform on which the design was produced, and Chapter 11 traces how.

The Same Shape Joins Any Set of Record Systems

In one view, the design is a read-only projection: five systems of record keep their authority, one object model of fourteen types joins them across keys they never shared, edge boxes watch machines without touching their controls, models forecast and reason inside the government boundary, and every release, work order and schedule change lands on a named person's decision.

Running the same shape elsewhere takes three things rather than a new architecture: an entity resolution gate proved on a week of live records before any analytics is trusted, per-class baselines and a failure mode register instead of trained weights, and licenses plain enough that the operator can hold its own weights on its own hardware, wherever the systems of record are the only things that differ.

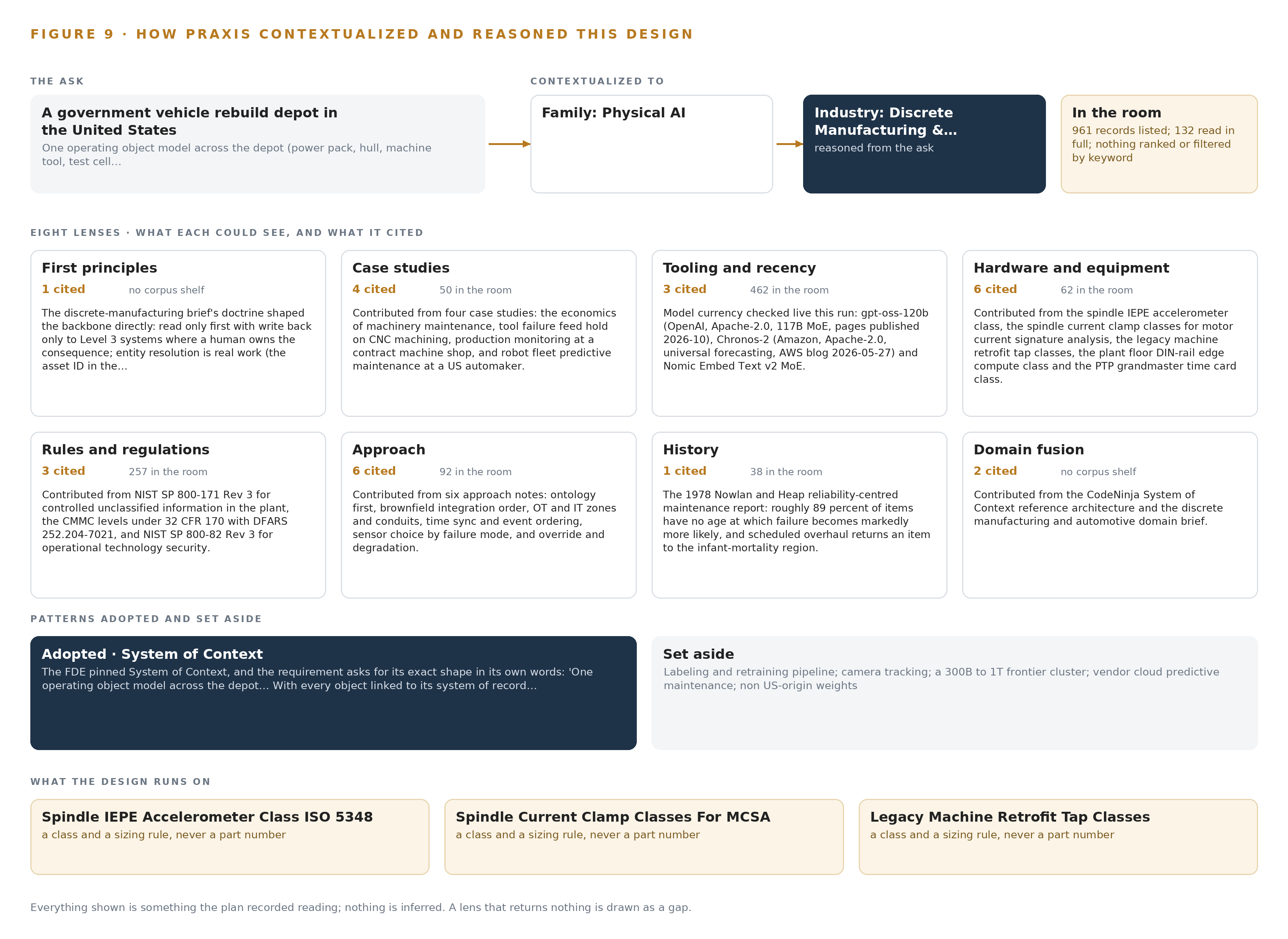

How Praxis Contextualized and Reasoned This Design

Every design in this series is produced on Praxis, and this chapter traces each choice in the paper back to the recorded reading that justified it, through the eight lenses and the patterns they returned.

Chapter 10 settled ownership, and it closed by naming the platform that produced the design. This chapter opens the record of that work, so a reader can trace any choice in this paper back to the recorded reading that justified it (Figure 9). Every design in the Vertical-Driven Architectures series is produced on Praxis, and this chapter is the trace for this one. Nothing in it is reconstructed after the fact: the ask, the reading and the patterns below are the recorded basis of the choices the paper has presented.

11.1  Contextualizing the Ask

The ask reached Praxis in the operator's own words: one operating object model across a United States discrete manufacturing and automotive operator, with power pack, vehicle hull, machine tool, test cell, work order, part lot and operator role each linked to its system of record; legacy machine tools and test equipment brought onto the network read only; the power pack test cell as the first live case with scripted cycles, continuous transducer and data bus reads, automatic open-format run reports published over the site's industrial interoperability standard, and a person's sign-off on every release; predictive maintenance on machine tools from live process data; reject causes traced through the model; scheduling proposals a planner decides; and, binding everything, a United States government site, US-origin open weights and named federal information security approvals. Praxis assigned the design to the Physical AI family in the Discrete Manufacturing and Automotive industry. In the room were the operator's stated requirement, read in full; the shelf of stack cards carrying the tooling choices with their versions; the model register with verified parameter counts, footprints, precisions and licenses; the hardware class register with its sizing rules; and the recorded failure-mode notes that became Table 5. The requirement was read in full; of 961 shelf records listed, 132 were read in full; all are available on request.

11.2  The Eight Lenses

Praxis reasoned the design through eight lenses, and Table 6 records what each could see, what it cited and what it contributed; a lens that returned nothing is shown as a gap rather than smoothed over.

11.3  Patterns Adopted and Set Aside

The patterns adopted are the ones the paper has argued: the projection ontology over four systems of record instead of point-to-point interfaces, because the failure is one of vocabulary that more interfaces reproduce; the read-only subscription backbone over OPC UA with no write to any machine or site control; per-machine-class baselines and thresholds instead of any trained weights; and edge buffering with catch-up after an outage, beside the machines it watches. The patterns set aside are equally recorded: the labeling and retraining pipeline is not built, because nothing is trained into weights and improvement runs through memory loops; camera tracking and people or vehicle positioning are not built, because crews, hulls and power packs are tracked through work orders, test runs and part lots rather than worn tags; no frontier 300B to 1T parameter cluster is designed, because the committed work surface model sits at 117B parameters under the US-origin constraint; a vendor cloud predictive maintenance service is set aside for the same rule that bars third-party model service; and the house default open-weight class of Chinese origin is set aside for the operator's own US-origin requirement.

11.4  Where the Reasoning Lands

The reasoning lands on four equipment classes that carry the machine condition duty: the spindle IEPE accelerometer class mounted per ISO 5348, the spindle current clamp classes for motor current signature analysis, the legacy machine retrofit tap classes for stack light and serial DPRNT taps, and the plant floor edge compute class, fanless and DIN-rail mounted, whose vibration acquisition load is the phase one measurement before the class is fixed. Around them sit the 48 GB PCIe inference class holding the work surface model at its native 4-bit build, the hardened managed switch class with PTP clock support on every hop, and the time card grandmaster class that anchors the clocks the joins depend on. Every choice in this chapter, and therefore every choice in this paper, traces to recorded reading: the requirement in the operator's words, the stack shelf, the model register, the hardware register and the lens notes. Nothing shown was inferred, and nothing in the design rests on a source this paper has not cited.
